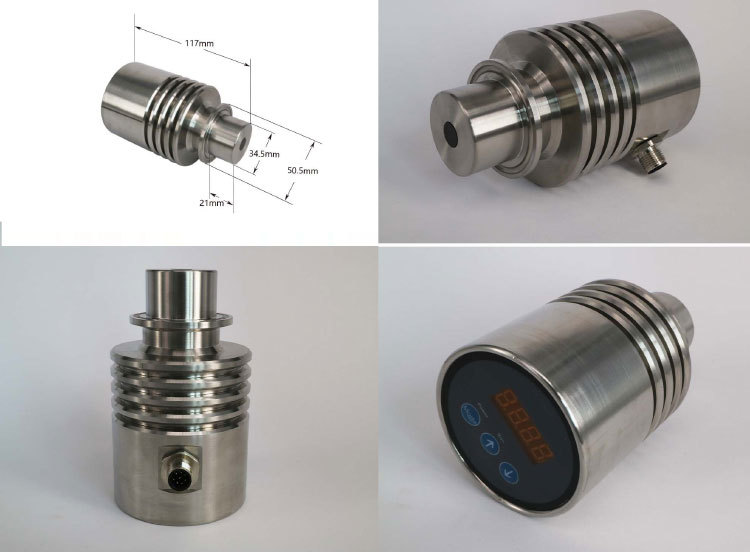

One: Appearance

Two: installation method

Three: access method

Interface cable color definition:

1. white/white 4-20ma

2. brown/brown-----4-20ma GND

3. Green/green connected to the ground (power protection)

4. yellow/yellow connected to the earth (485 protection)

5. gray/gray 485 A+/TXD

6. pink/pink 485 B-/RXD

7. blue/blue 24V-

8. red/red 24V+

9. Thick black (shielding layer) connector ferrule

Way of working:

Measurement will automatically start 10 seconds after power-on, and measurement will be performed every 5 seconds by default. A green light can be seen flashing on the back panel.

Analog output: 24V 4 ~ 20mA.

Data output: RS485 communication method. Baud rate: 115200 bps,

Check digit: N

Data bits: 8

Stop bit: 1

Automatically output measured values after measurement

Data format: temperature, Brix, refractive index
