Yuke YK-802 dynamic light scattering nanometer particle size analyzer which based on the dynamic light scattering principle, and also 1^st one which use digital correlator in China. And It’s upgrade from Yuke YK-801, which is 1^st set of Nanometer particle size analyzer. Based on Brownian motion principle, smaller particle, faster speed, bigger particle, more slowly. It adopt great performance of Japan HAMAMATSU photomultiplier and self-developed high speed digital correlator as core parts, Get diffusion coefficient by test scattering light change in some angle, and calculate particle diameter and distribution according to stokes-Einstein equation. the machine is with characters of fast calculation, high resolution ration, good accuracy and repeatability, therefore it’s widely used in company product lab research and university use.

Nano metallic oxide, Nano metallic powder, Nano ceramic material, protein, polymer latex, preparation of pharmaceutical, water/oil emulsion, paint, coating material, pigment, ink, toner, cosmetics and other fields of research, preparation and application of nano materials.

 1) Advanced test principle:

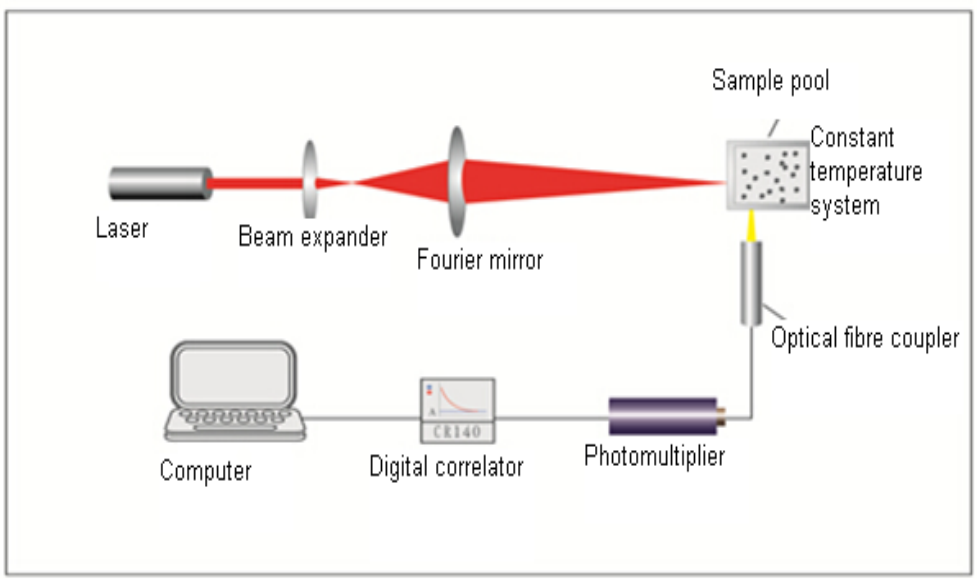

Dynamic light scattering principle and photon correlation spectrum technology, according to Brownian motion speed of particle to test particle size, different size of particles have different speed, when laser illuminate these particles, it will make scattering light happen different speed of fluctuations- downs.

Photo correlation spectrum method will analyze these particle size according to Photon fluctuations -downs in particular direction.

  2)  High resolution:

Using PCR technology test nanometer-scale particle size, must be able to distinguish nanosecond signal fluctuations. The core components of the instrument is CR256 digital correlator developed by our company, with 8ns high resolution speed.

3) High sensitivity and Noise-signal ratio

  Detector is composed of imported HAMAMATSU photomultiplier, so ensure good accuracy.

4) High speed data collection and calculation

  Self-developed patent product-CR256 digital correlation, It could finish dynamic scattering light intensity collection and autocorrelative function real time calculation, Data processing speed is up to 162M, effectively reflect dynamic scattering light information of different sizes of particles.

5)High stable optical path system

  Photon correlation spectrum detect system adopt optical-fibre technology, smaller size and high anti-interference and reliability.

6)High precision constant temperature control system

  Semiconductor temperature control technology, precision control within ±0.1℃，make samples be in a constant state throughout the testing process, prevent testing error because temperature change will change liquid viscosity and Brownian movement speed.

7) Output parameters: Real particle size distribution, freely set D10-D100, D[4,3],D[3,2], D[2,1],D[1,0] and specific surface area.
