Distributed system with close connection modular design

The distributed system with close connection modular design is configured, and the high-power circulating pump is used to optimize the design of the pipeline. The distributed system is independent of the test system, and the instrument maintenance is more convenient.

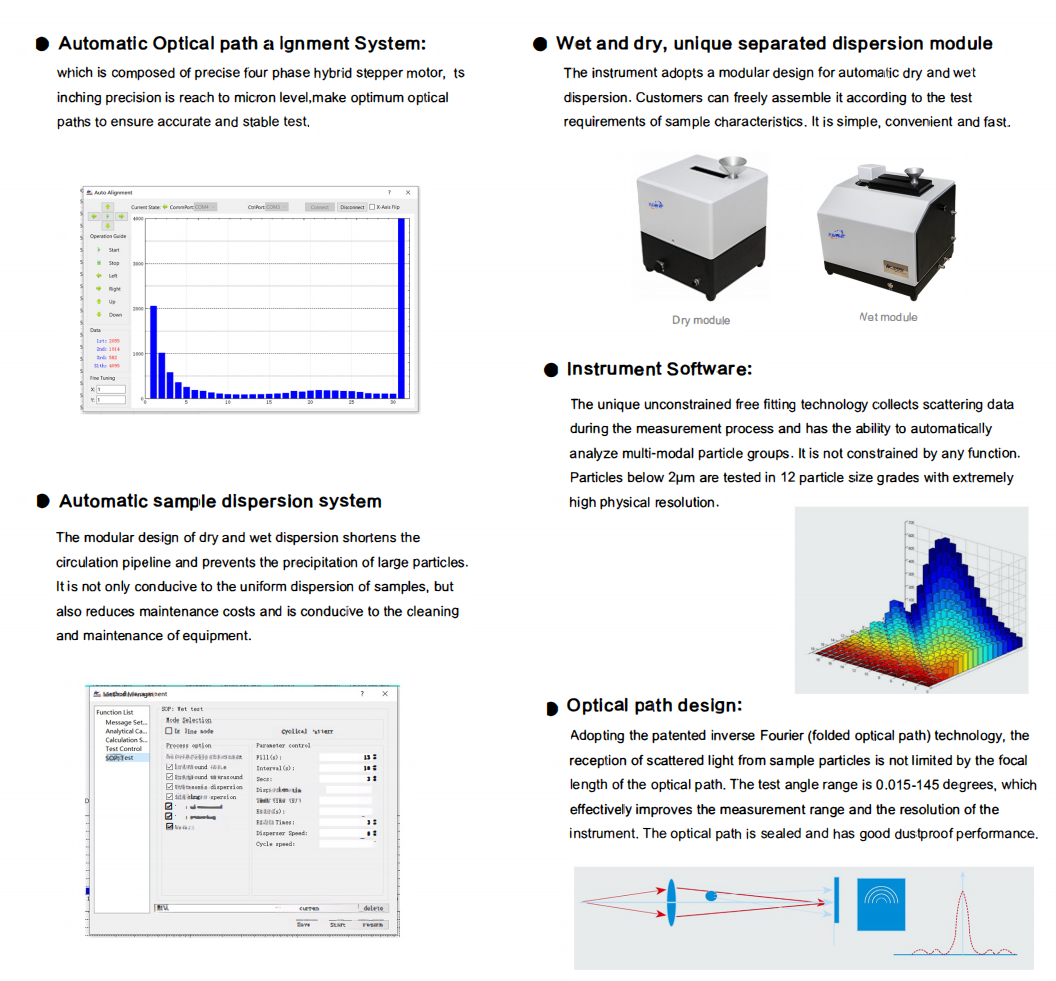

Automatic alignment of light path

The self-developed three-dimensional automatic alignment system (Patent No.: ZL. 2013 20835882.4) adopts a precision four phase hybrid stepping motor, with micro precision reaching the micron level, so that the optical path of the instrument is always in the alignment state, providing a basic guarantee for the accuracy and stability of the test results.

Unconstrained free fitting technique

The particle size analysis is not limited by any function and truly reflects the particle distribution.

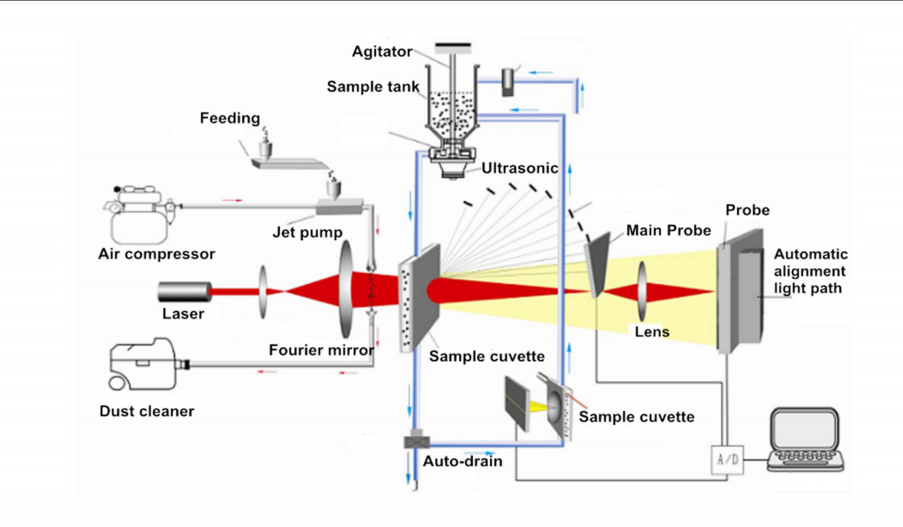

Double laser orthogonal optical path

Adopting the patent technology of convergent Fourier transform, the scattered light is not limited by the lens aperture; The double spectral plane optical path design is adopted, the measurement range is expanded to 2000 microns, the detection angle is 0.0155 degrees to 164 degrees, and the imported Fourier lens is adopted to ensure the stability and accuracy of particle measurement. The self-developed double laser orthogonal optical path, using the horizontally polarized light of the blue semiconductor assisted laser, can simultaneously accept the forward, lateral and back scattering light of nano particles, effectively improving the measurement accuracy of nano particle size.

Intelligent operation

The software is intelligent and supports one click operation. Click "automatic test" and add samples according to the prompt, and other operation steps will be completed automatically.
