IVS400 is an upgraded model on the basis of IVS300, realizing the functions of continuous automatic cleaning, automatic measurement, automatic waste discharge and automatic drying.
Performance Features
Δ Dual-mode on-line cleaning
● No need to dismantle the viscometer, the waste liquid can be drained directly and the viscometer can be rinsed by adding cleaning agent or the next sample;
● Continuous measurement, the new sample to replace the old sample, simulating the manual cleaning method, high-frequency pulsed repeated automatic squeeze cleaning, immersion cleaning hovering immersion, and even difficult-to-clean polymers can be cleaned.;
● Greatly reduce the exposure of experimental personnel to toxic chemical reagents, to ensure the safety of experimental operators;
● Single reagent dosage of 10-12 ml, rinse volume is less than 12 ml, the remaining 13 ml for measurement.
ΔAutomatic Liquid Filling （Optional）
● Configuration of automatic liquid filling module, 1-3 kinds of reagents can be selected, the test is completed automatically add liquid, automatic cleaning, automatic liquid discharge, automatic drying.
ΔIntelligent waste liquid collection
● No matter how many measurement units are selected, only one set of waste liquid collection device is needed to complete waste liquid collection.
● The waste liquid device is set up for separate collection, which is conducive to waste liquid treatment and recycling, saving and protecting the environment.
ΔSoftware Function Integration
● Measurement and cleaning functions are integrated in the same software, which is easy for experimenters to operate without switching;
● QDS/LIMS system can be connected, and the experimental data can be uploaded automatically to realize the intelligent laboratory.
Technical Parameters
Model No. | IVS400-2 | IVS400-4 | IVS400-6 |
Measuring time range | 0.001-9999.999(s) | 0.001-9999.999(s) | 0.001-9999.999(s) |
Temperature control range | 15-90℃ | 15-90℃ | 15-90℃ |
Viscosity range | 0.3-100000(mm²/s) | 0.3-100000(mm²/s) | 0.3-100000(mm²/s) |
Test Temperature Field Uniformity | ≤±0.01℃ | ≤±0.01℃ | ≤±0.01℃ |
Timing accuracy | 0.001s | 0.001s | 0.001s |
Wireless distance | 30m | 30m | 30m |
Testing station | 2 | 4 | 6 |
Water bath volume(L) | 25 | 33 | 41 |
Dimension of water bath(mm) | 640×270×600 | 850×270×600 | 1020×270×600 |
Cooling system size(mm) | 200×360×380 | 200×360×380 | 200×360×380 |
Power supply / power | 220V50HZ/1200KW | 220V50HZ/1200KW | 220V50HZ/1200KW |
DX-Series Connection (Optional)
The IVS400 Automatic Viscometer connects to the DX Series to automate the addition of liquids and complete the entire viscosity testing process.
Product Model | DX10 | DX30 |
Pipetting accuracy | 1% | 1% |
Dosing volume | 1-250ml | 1-250ml |
Channel number | 2-4 | 2-4 |
Working environment humidity | 20-80%，no condensation | |
Rotary | / | 12 |
Measurable Sample Results
Characteristic Viscosity (Viscosity Number) ; Relative Viscosity; Value Specific Viscosity Value (Viscosity Number) ; Fickentscher's K-Value Viscosity average molecular weight value ; Kinematic viscosity value; Degree of polymerization Kinetic viscosity Measured standard/absolute/percentage deviation values Logarithmic viscosity (logarithmic viscosity) ; Time and average value
Measurement Methods
Single-point method; Serial extrapolation; Solomonciuta method; Billmeyer method; Martin method; Huggins method; SchulzBlaschke method; Point/slope method; Marone method

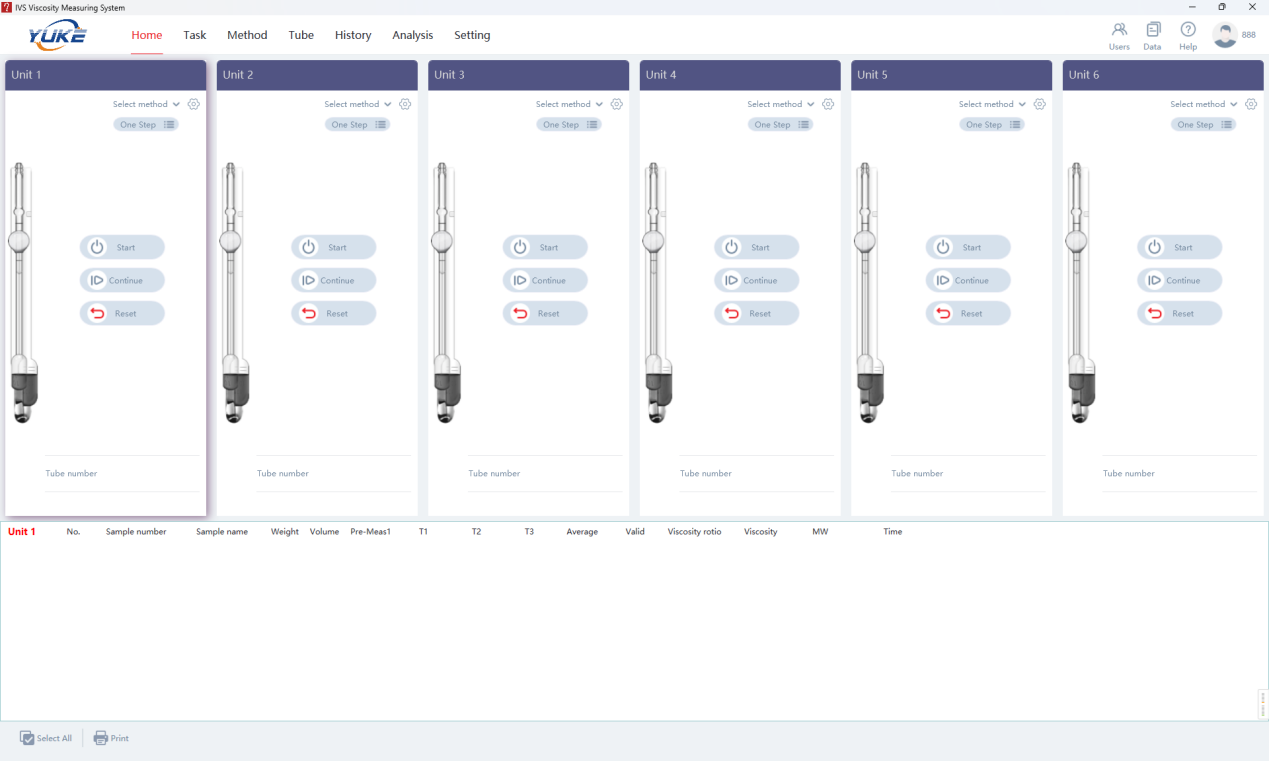

IVS400 software function
●Viscobee professional software with English & Chinese interface ;
●Display the operation status of each measuring head, and can control 6 measuring heads at the same time;
●The system intelligently determines whether test results exceed the deviation threshold and automatically initiates retesting when required;
●Single viscometer multi-concentration serial extrapolation function;
●Each measuring unit can be calculated independently according to the required calculation formula;
●The software has a new function of data statistics;
●Special formulas can be customized;
●Authority level operation, User management;
●Experimental data can be exported in picture, Excel and PDF formats;
●Software supports Win7, Win8, Win10, Win11 and other systems.
Packing List
No. | Product | Type | QTY |
1 | High precision water bath | VT6 | 1 set |
2 | Cooling system | SC400 | 1 set |
3 | Measuring head | IVS400 | 6 sets |
4 | Safety bottle for measuring head | Glass bottle | 6 pcs |
5 | Control box | MC-300B | 1 set |
6 | Viscometer software | 1 set | |
7 | Software key | 1 set | |
8 | Stabilized pressure vacuum pump | V80 | 1 set |
9 | 0.01℃ standard thermometer | 0.01 ℃ Digital thermometer | 1 Set |
10 | Ubbelohde capillary viscometer | Size depend on buyer's request | 12 pcs |
11 | Viscometer holder | Stainless steel | 6 pcs |
12 | 6-position viscometer holder rack | Stainless steel | 1 Pcs |
13 | Filter funnel | G2 | 12 pcs |
14 | Double port waste liquid bottle | 2L | 2 pcs |
15 | Discharge tube | 2.5mm | 6 pcs |
16 | Three hole GL45 blue bottle cap | 2 pcs | |
18 | Installation package | Notes | 1 set |
19 | Computer | Not provided (any laptop, computer, with USB port will be fine) | 1 set |
20 | Documents | Certificate,warranty card,instructions | 1 set |
